SH-I-5MS

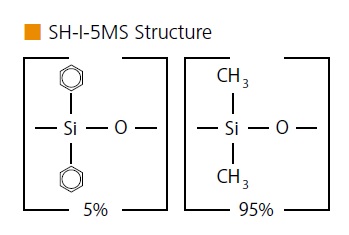

  • Low-polarity phase: Crossbond™ 5% diphenyl / 95% dimethyl polysiloxane
  • Tested and guaranteed for ultra-low bleed; improved signal-to-noise ratio for better sensitivity and mass spectral integrity.
  • General-purpose columns for semi-volatiles, phenols, amines, residual solvents, drugs of abuse, pesticides, PCB congeners (e.g., Aroclor mixes), solvent impurities.
  • Equivalent to USP G27 and G36 phases.
  • Similar phases: Rxi-5MS, HP-5ms UI, HP-5ms, HP-5msSV, DB-5, Ultra-2, CP Sil 8 CB, SPB-5, Equity-5, BP-5, ZB-5, ZB-5msi, 007-5, AT-5ms
P/N ID df (Film Thickness) Length Temp. Range
227-36342-01 0.10 mm 0.10 μm 10 m -60 to 330/350°C
227-36015-01 0.18 mm 0.18 μm 20 m -60 to 330/350°C
227-36016-01 0.18 mm 0.30 μm 20 m -60 to 330/350°C
227-36017-01 0.18 mm 0.36 μm 20 m -60 to 330/350°C
227-36018-03 0.20 mm 0.33 µm 12 m -60 to 330/350°C
227-36018-01 0.20 mm 0.33 μm 25 m -60 to 330/350°C
227-36018-02 0.20 mm 0.33 μm 50 m -60 to 330/350°C
221-75940-15 0.25 mm 0.25 μm 15 m -60 to 330/350°C
221-75940-30 0.25 mm 0.25 μm 30 m -60 to 330/350°C
227-36019-01 0.25 mm 0.25 μm 60 m -60 to 330/350°C
227-36020-01 0.25 mm 0.40 μm 30 m -60 to 330/350°C
227-36021-01 0.25 mm 0.50 μm 15 m -60 to 330/350°C
221-75941-30 0.25 mm 0.50 μm 30 m -60 to 330/350°C
221-75942-60 0.25 mm 0.50 μm 60 m -60 to 330/350°C
227-36022-01 0.25 mm 1.00 μm 15 m -60 to 330/350°C
227-36022-02 0.25 mm 1.00 μm 30 m -60 to 330/350°C
227-36022-03 0.25 mm 1.00 μm 60 m -60 to 330/350°C
227-36023-01 0.32 mm 0.25 μm 15 m -60 to 330/350°C
221-75943-30 0.32 mm 0.25 μm 30 m -60 to 330/350°C
227-36023-02 0.32 mm 0.25 μm 60 m -60 to 330/350°C
227-36024-01 0.32 mm 0.50 μm 15 m -60 to 330/350°C
221-75944-30 0.32 mm 0.50 μm 30 m -60 to 330/350°C
227-36024-02 0.32 mm 0.50 μm 60 m -60 to 330/350°C
227-36025-01 0.32 mm 1.00 μm 15 m -60 to 330/350°C
227-36025-02 0.32 mm 1.00 μm 30 m -60 to 330/350°C
227-36025-03 0.32 mm 1.00 μm 60 m -60 to 330/350°C
227-36026-01 0.53 mm 0.25 μm 15 m -60 to 330/350°C
227-36026-02 0.53 mm 0.25 μm 30 m -60 to 330/350°C
227-36027-01 0.53 mm 0.50 μm 15 m -60 to 330/350°C
227-36027-02 0.53 mm 0.50 μm 30 m -60 to 330/350°C
227-36028-01 0.53 mm 1.00 μm 15 m -60 to 330/350°C
227-36028-02 0.53 mm 1.00 μm 30 m -60 to 330/350°C
227-36029-01 0.53 mm 1.50 μm 15 m -60 to 330/350°C
227-36029-02 0.53 mm 1.50 μm 30 m -60 to 330/350°C

For SH-I-5MS Columns with Integrated Guard column, please refer to the Integrated Guard Columns' page.
