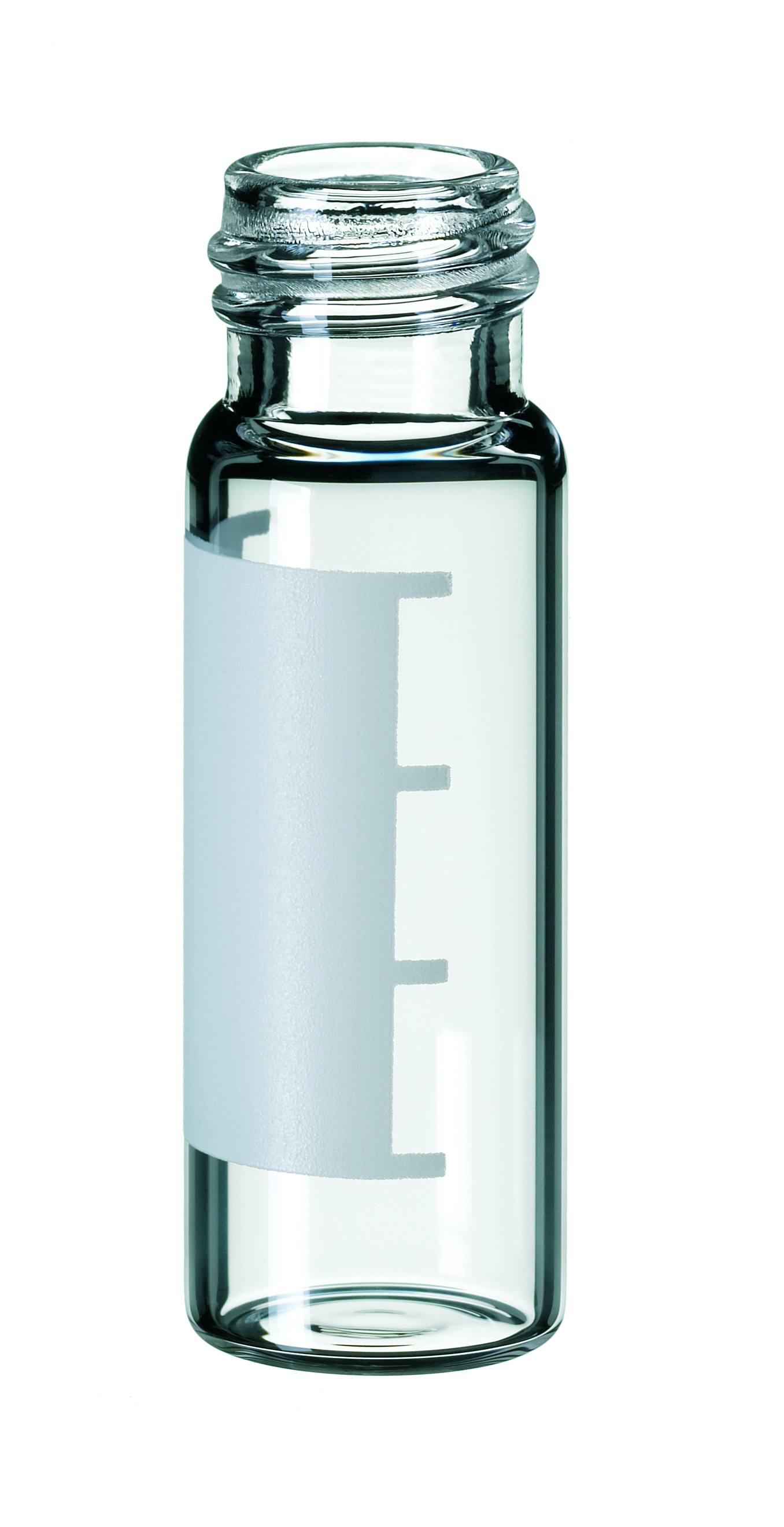

Glass Vials 4.0 ml Screw Neck

100 pcs. / pack


961-10020-04

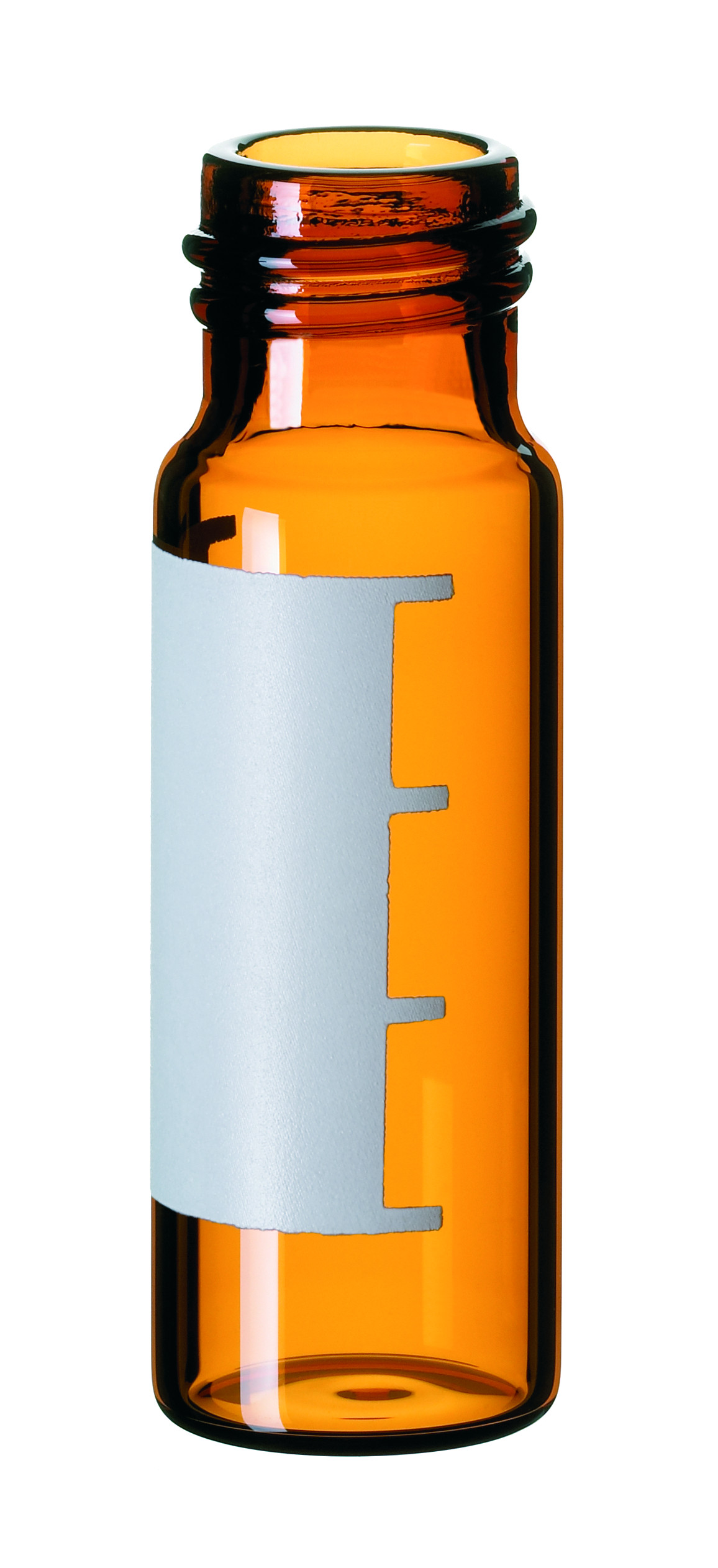

961-10020-05
P/N 961-10020-04 961-10020-05
Volume [ml] 4.0 4.0
Material, color glass, clear glass, amber
Neck screw neck screw neck
Head O.D. [mm] 13 13
Bottom flat flat
Dimension 45.0 x 14.7 45.0 x 14.7
Marking label and filling lines label and filling lines

Screw Caps for 4.0 ml Vials

1000 pcs. / pack

961-10030-01
961-10030-02
961-10030-07
1 2 3






Picture P/N Color Material Hole [mm] Thread [mm] Color Material Thickness [mm] Shore A

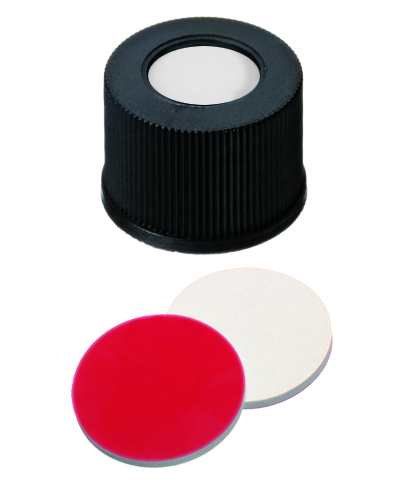

1 961-10030-01 black PP 8.5 13 cream / read silicone / PTFE 1.5 55°

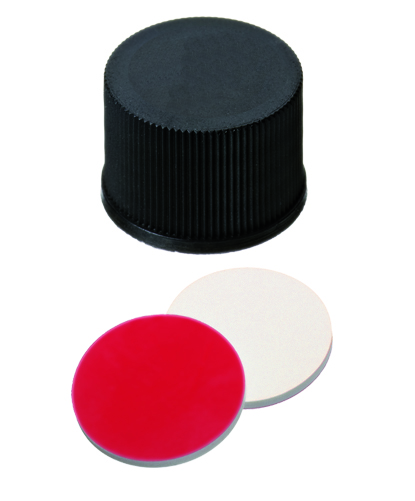

2 961-10030-02 black PP ./. 13 cream / read silicone / PTFE 1.5 55°

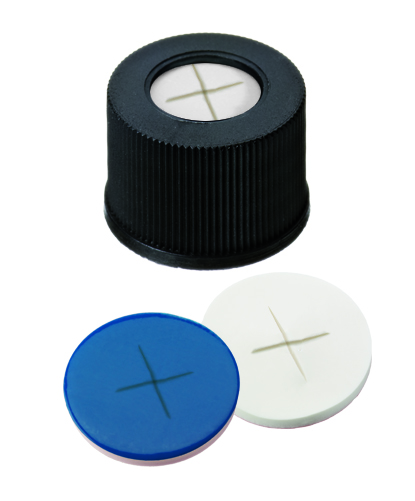

3 961-10030-07 black PP 8.5 13 white / blue silicone / PTFE
with cross-slit
1.5 55°

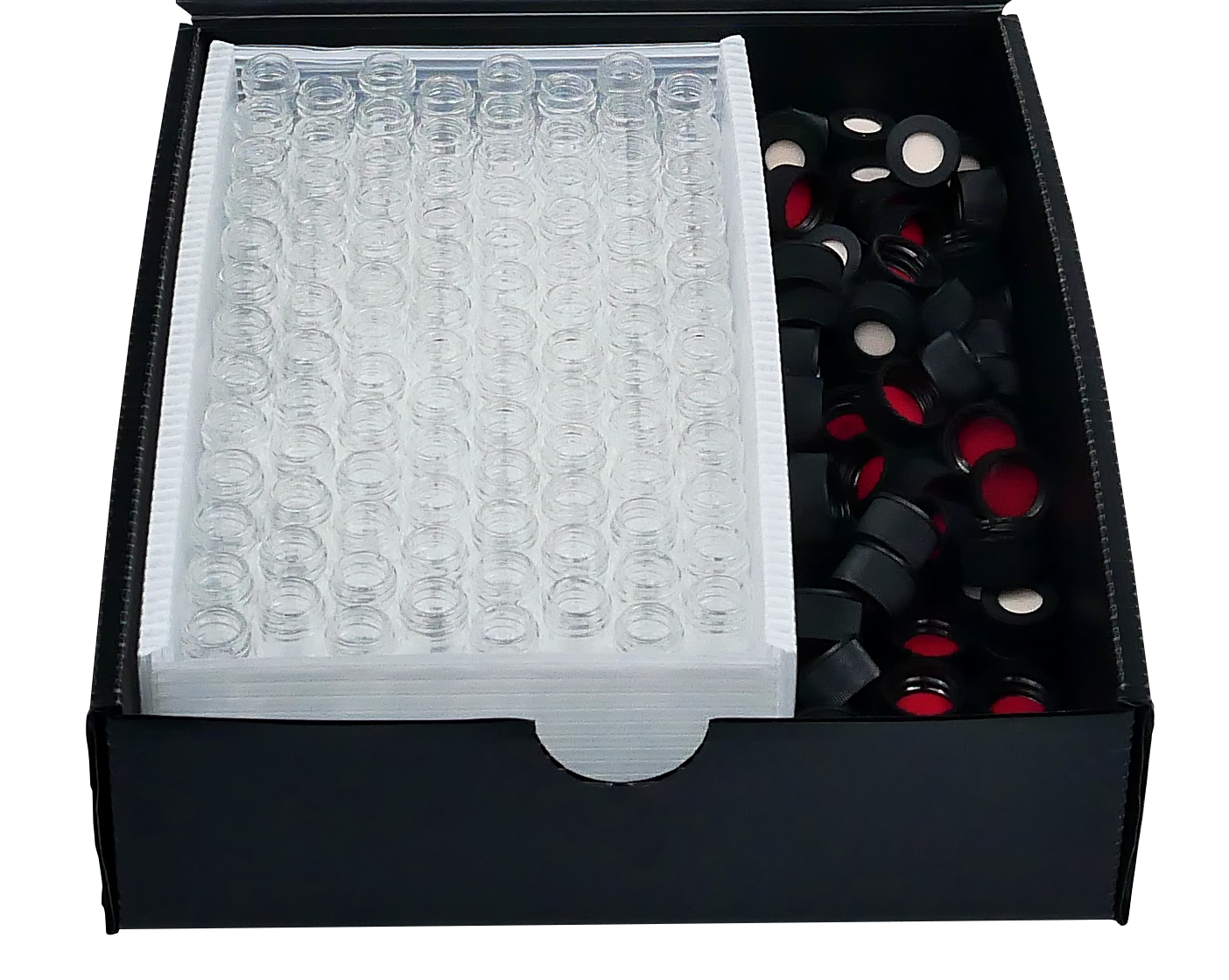

Kits 4.0 ml

Content: 100 pcs. / pack
Including vials, caps and septum

Kit



Kits P/N Vial
(Vials P/N)
  Cap incl. septum
(cap incl. septum P/N)

961-10010-05

4.0 ml glass, clear with label and filling lines; 13 mm screw thread; 45.0 x 14.7 mm

961-10020-04

961-10020-04

black PP-cap 8.5 mm centre hole; silicone cream/PTFE red; 1.5 mm thick; 55° shore A

961-10030-01

961-10030-01
961-10010-04

4.0 ml glass, amber with label and filling lines; 13 mm screw thread; 45.0 x 14.7 mm

961-10020-05

961-10020-05

black PP-cap 8.5 mm centre hole; silicone cream/PTFE red; 1.5 mm thick; 55° shore A

961-10030-01

961-10030-01
228-31537-91

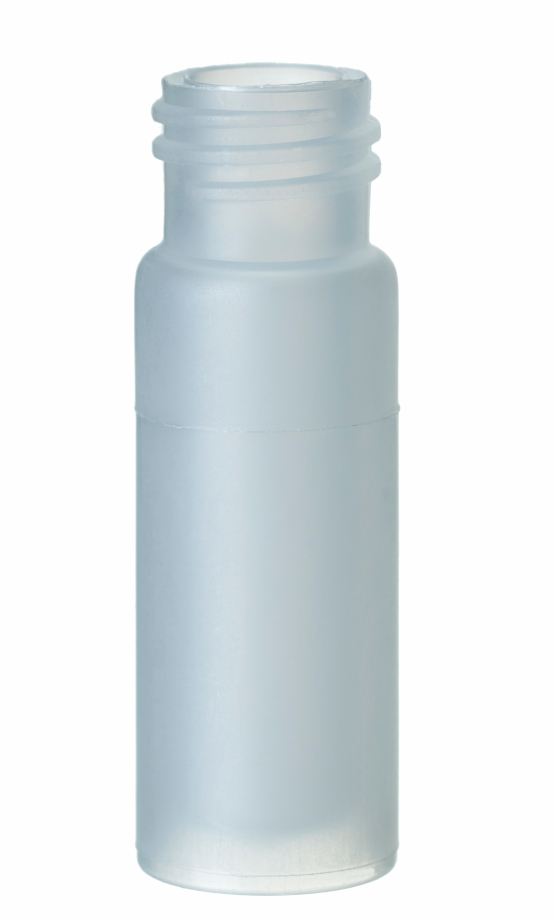

4.0 ml PP, clear; 13 mm screw thread; 45.0 x 14.7 mm

recommended e.g. for ion chromatography

228-31537-91

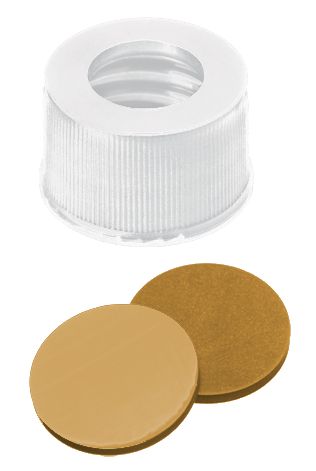

white PP-cap; centre hole; silicone transparent/rubber beige
228-31537-91

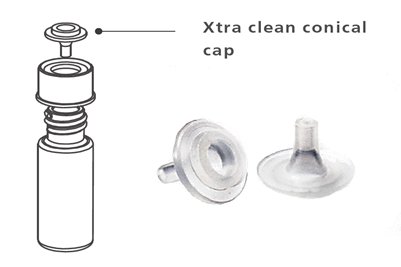

Xtra Clean Conical Cap, Long-Term Stability

  •
  • The septa-less structure ensures that the cleaning solvent is not contaminated by the septum
    Xtra clean conical caps are septa-free caps that significantly reduce solvent evaporation

    227-35600-01

    Ideal for a vial cap for washing/cleaning solvents. The septa-less structure ensures that the cleaning solvent is not contaminated by the septum, making it safe to use for long-term multi sample analysis, while reducing the rate of solvent evaporation.

    It can be used with any of the above mentioned screw caps after removing the septa. The caps have to be bought separately.

P/N Description Content
227-35600-01 Xtra clean conical cap, 4 ml 12 pcs.
