Grips for Shouldered-Rod Specimens

Features:

  • Designed to test shouldered-rod specimens with specific dimensions
  • Models with maximum capacity of 50 kN (11,000 lbf), 100 kN (22,000 lbf), and 250 kN (55,000 lbf)


Relevant Materials:
Metals, Ceramics

Relevant Specimens:
Shouldered Rods

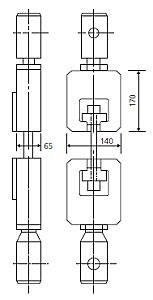

Specimen dimensions for use with grips for shouldered-rod specimens are shown in the figure below.

Specimen dimensions for use with grips for shouldered-rod specimens

Introduction of specimens into the grips is straightforward and the design of these grips is such that during testing the specimen and grips exert opposite forces on each other, holding the specimen tightly in the grips.
